bosch e bike display meilen km h Kiox 500 display

bosch e bike display meilen km h Kiox 500 displayThe Kiox 500 is a 2. 8 inch (240 x 320 pixels) transmissive TFT display designed to provide an exceptional e bike riding experience. With its intuitive operation via the LED Remote, the Mini Remote in combination with the System Controller, or the Purion 200, this display allows you to easily manage all the functions of your eBike. Flexibility is a major asset of the Kiox 500. It can be optimally positioned thanks to a modular screen support

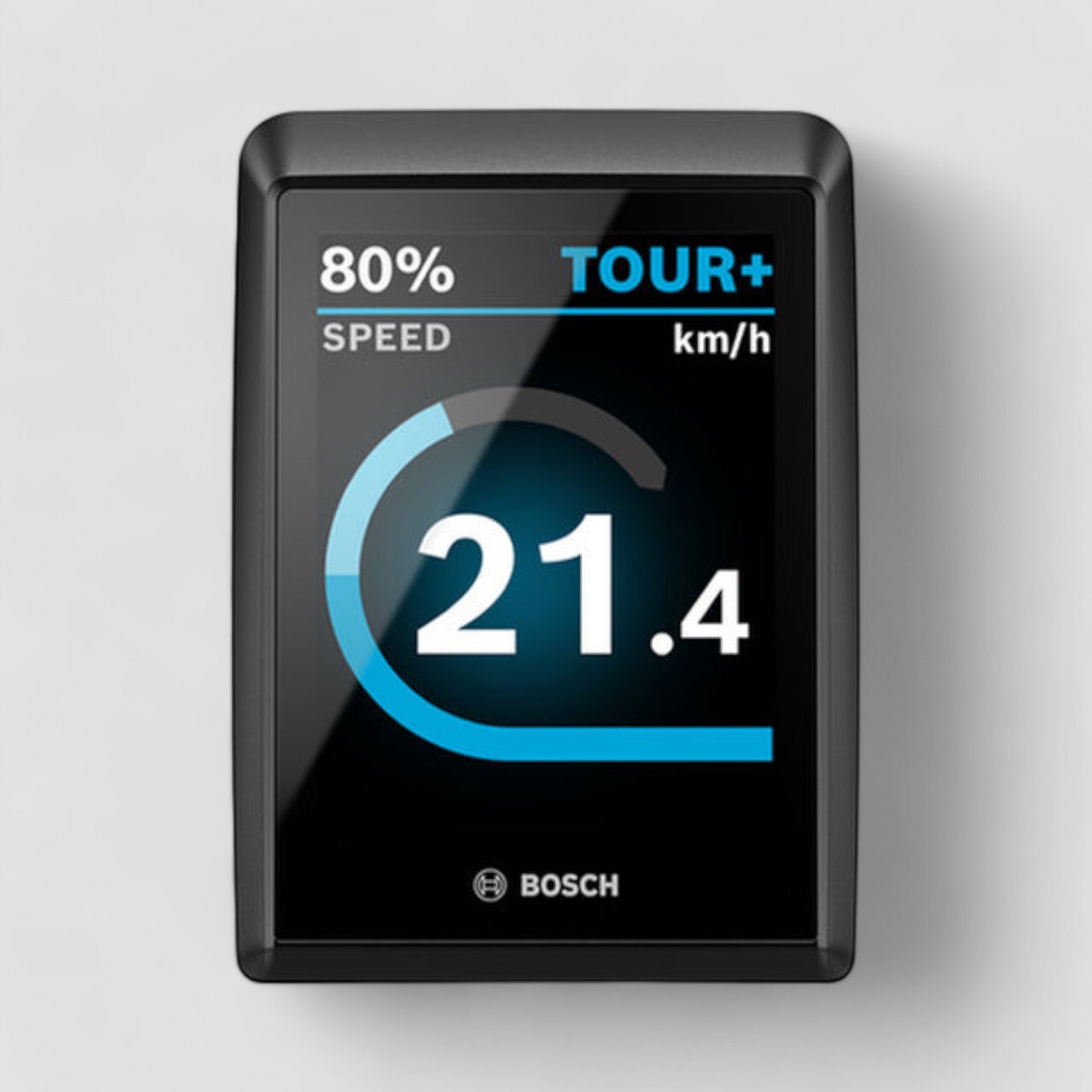

The Kiox 500 is a 2.8-inch (240 x 320 pixels) transmissive TFT display designed to provide an exceptional e-bike riding experience. With its intuitive operation via the LED Remote, the Mini Remote in combination with the System Controller, or the Purion 200, this display allows you to easily manage all the functions of your eBike.

Flexibility is a major asset of the Kiox 500. It can be optimally positioned thanks to a modular screen support compatible with handlebars with a diameter of 31.8 or 35 mm.

Powered directly by your eBike battery, the Kiox 500 features an ambient light sensor that automatically adjusts the display backlight, ensuring optimal readability in all lighting conditions. Its IP55 dust and water protection ensures rock-solid durability, while the operating temperature range of -5°C to +40°C ensures reliable performance in a variety of conditions.

The Kiox 500 emits acoustic signals for navigation and system messages, with a volume that can be adjusted to three levels or completely deactivated. This allows you to stay focused on the road while receiving crucial information. In addition, software updates are easily managed via the eBike Flow app, which also allows the recording of your activities and the configuration of the eBike Lock. The latter function transforms the Kiox 500 into a security key for your bike, activated by removing or replacing the display.

The Kiox 500 comes with the display and a user manual, providing you with everything you need for a hassle-free setup and use. With its advanced features and robust design, the Kiox 500 is the ideal tool to maximize the potential of your e-bike.

Compatible for:

CARRIE 2024->
Charger4 /Charger4 mixed 2023->
Cruiser2 / Cruiser2 Mixed (3) 2023->
Culture / Mixed Culture (3) 2024->
DELITE4 (4) 2024->
Homage4 (4) 2024->
LOAD4 60 (4) 2023->
LOAD4 75 (3) 2023->
Multicharger (2) (also mixed) (pre-Multicharger2 2021-2023
Multicharger2 (3) 2024->
Multitinker (1) 2023->
NEVO4 (4) 2023->
PACKSTER2 70 2024->
PACKSTER2 70 CT 2025>
ROADSTER4 (4) 2024->
Swing4 2024->
Tinker2 (4) 2023->
Transporter2 65/85 2023->
